The Polypipe range of ductile iron inspection chamber covers has been designed to combine high strength and light weight and includes additional features such as the unique, slip-resistant Polypipe cover tread pattern and other safety enhancements.
Key Benefits
- All fully comply with BS EN 124:2015 and carry the BSI Kitemark
- Suitable for intensity of traffic in either Class A15 or B125 applications
- Manufactured in the UK from quality assured and highly durable ductile iron
- Unique, slip resistant Polypipe cover tread pattern
- Easy removal with slide out design
- Engineered keyways for life long access
- Range of frame depths including 70mm square (UG520) ideally suited for installation in block paved locations
Product Range Class A15 – 450mm Round
UG419 – Class A15 450mm round ductile iron inspection chamber cover and 30mm deep frame capable of withstanding a 3.5 tonne test load.
- For use in areas where pedestrians and pedal cyclists have access
- May also be used in driveways which are only subject to light vehicular traffic when the frame is fully supported by a 150m deep concrete collar
- A15 covers may not be acceptable for adoption by some water companies
Product Range Class B125 – 450mm Square

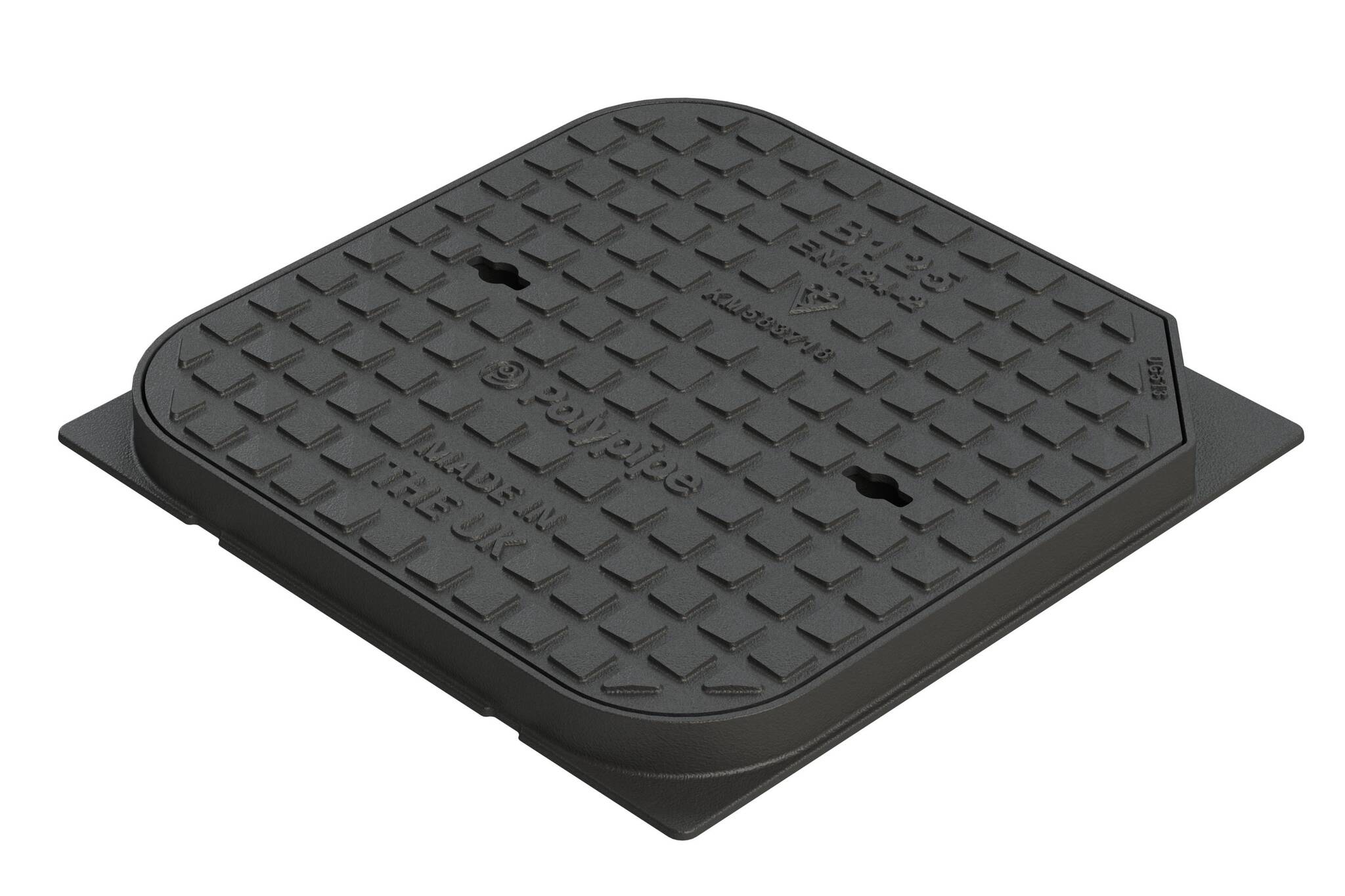

UG513 – Class B125 inspection chamber cover with 40mm deep frame, capable of withstanding 12.5 tonnes test load.
- Suitable for driveways, footpaths, pedestrian and comparable areas, car parks and car parking decks
- B125 is the minimum class of cover accepted by some water companies for adoptable areas
UG520 – Class B125 inspection chamber cover with 70mm deep frame, capable of withstanding 12.5 tonnes test load.
- Complete with 350mm reduced access frames for suitable block paving
- Suitable for driveways, footpaths, pedestrian and comparable areas, car parks and car park decks
- B125 is the minimum class of cover accepted by some water companies for adoptable areas
Product Range Class B125 – 450mm & 320mm Round
UDC750 – Class B125 inspection chamber cover with 30mm deep frame, capable of withstanding 12.5 tonnes test load.
- Suitable for driveways, footpaths, pedestrian and comparable areas, car parks and parking decks.
- B125 is the minimum class of cover accepted by some water companies for adoptable areas.
UDC700 – Class B125 inspection chamber cover with 50mm deep frame, capable of withstanding 12.5 tonnes test load.
- Suitable for driveways, footpaths, pedestrian and comparable areas, car parks and parking decks.
- B125 is the minimum class of cover accepted by some water companies for adoptable areas.
You can find out more about our range of covers and frames here.
